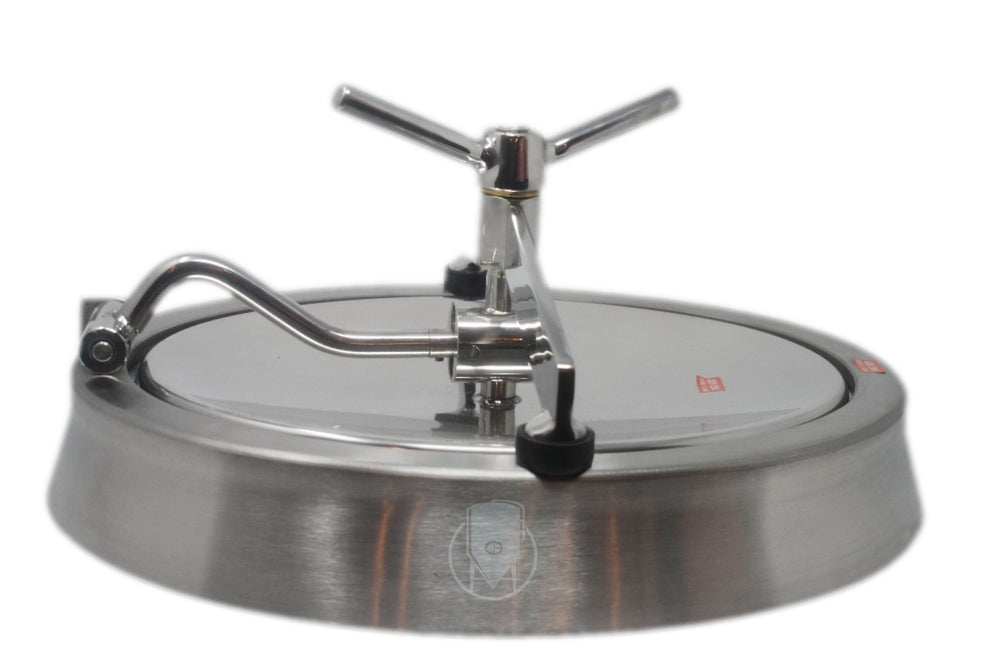

480 x 580 Stainless Steel 304 Oval Manway
£437.50was £552.00
Technical Information:
Material: SS304
Inner Surface: 0.8μm - 0.4μm
Outer Surface: Matter
Hand Wheel: 1 Y Stainless Steel
Height: 133mm
Gasket: Silicone
Pressure: 1-3 Bar

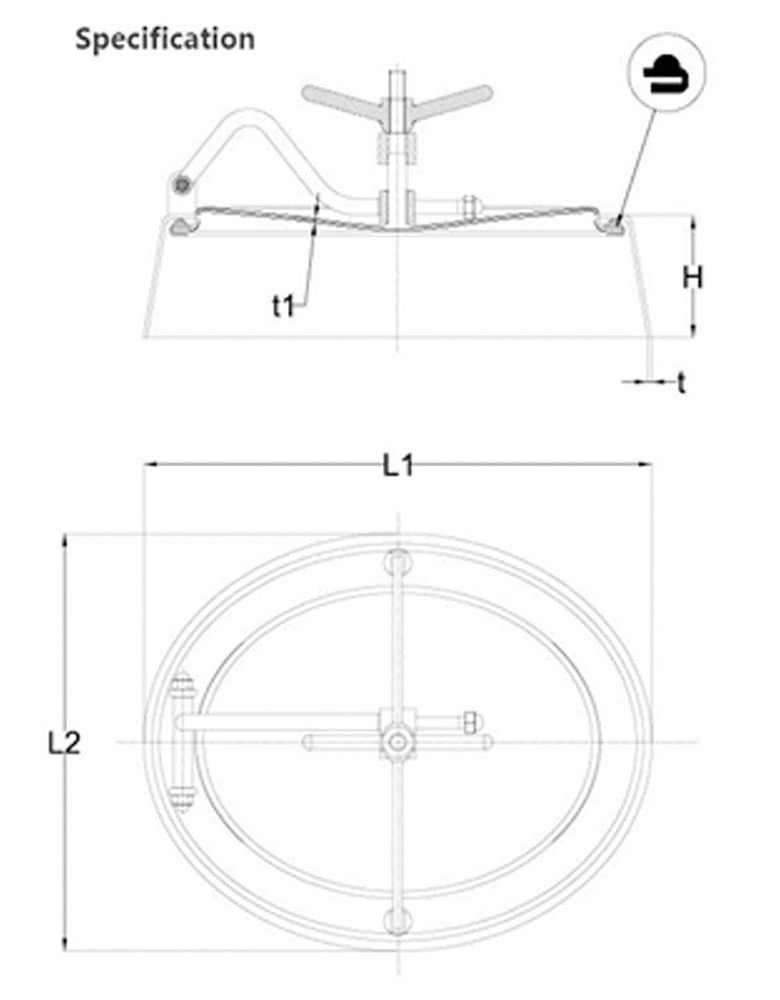

Sizing Information:
| Size | OD L1*L2 |
t mm |
H mm |
t1 mm |
Hand Wheel - Num |
Pressure (Bar) |
| 500*450 | 500*450 | 3 | 800 | 3 | 4 | 1-3 |
| 550*450A | 550*450 | 4 | 800 | 3 | 5 | 1-3 |
| 565*465 | 565*465 | 4 | 100 | 3 | 5 | 1-3 |
| 580*480 | 580*480 | 4 | 133 | 3 | 5 | 1-3 |
