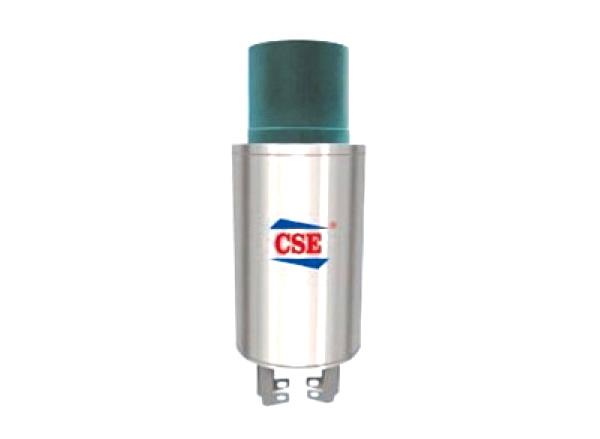

C101 Actuator 4" Single Acting 304


The C101 Actuator is a single acting Air open / Spring close unit for use with the 4” Butterfly Valve with a disc head size of 12mm X 12mm.

This Actuator is suitable for use with the Control Top or with Proximity switches.

Control Methods:

Can be fitted with an M12 screw proximity switch (PNP or NPN).

Can be fitted with a pre-assembled control top containing 1 x 24v DC solenoid valve and 2 x micro switches

Accessories: 2 x M6 X 40 socket cap screw, 4 x washer, 2 x M6 nut, 1 x 1/8pt quick coupler.
