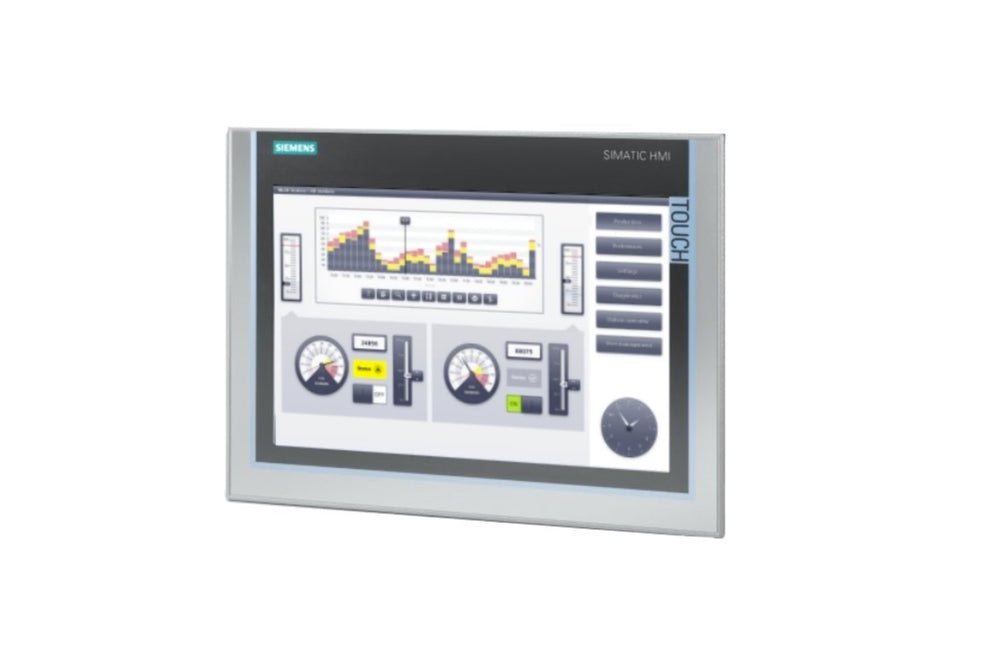

TP1200 Comfort SIMATIC HMI Touch

£0.00

12 inch Panel with TFT color widescreen display.

The TP1200 Comfort is the successor of the Multi Panel MP 277 10 inch Touch, it offers 22% additional display space, a higher screen resolution and higher performance.

Hardware





Display

12.1 inch TFT widescreen display, 16 Mio colors

Resolution

1280 x 800 px

Control elements

Touch screen

User memory

12 MB

Interfaces

2 x RJ 45 Ethernet for PROFINET
1 x RS 485/422 for PROFIBUS/MPI
2 x USB-host, 1 x USB- device
2 x SD card slot

Degree of protection

IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout

310 x 221 mm (W x H)

Front panel

330 x 241 mm (W x H)

Device depth

63 mm

Software functions





Configuration software

WinCC Comfort (TIA Portal) or higher

Messages

4000

Message classes

32

Process pictures

500

Variables

2048

Vector graphics

x

Bar graphics

x

Curve diagrams

f (t), f (x)

Recipes

300

Archiving

50

Visual Basic Scripts

100
