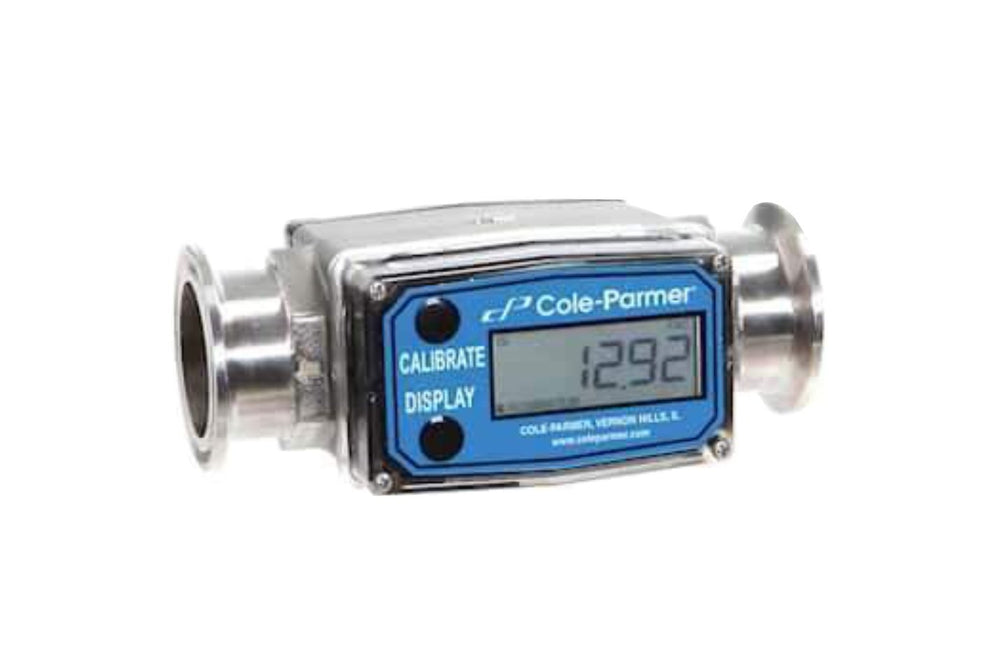

Cole-Parmer Heavy-Duty Turbine Flowmeters/Totalizers
An excellent selection for most basic industrial flow metering applications
1" and 1.5" Tri clamp ends available
- Battery-powered to eliminate the need for expensive wiring
- Sanitary units are perfect for micro-brewing and wine making processes
- Two totalizers allow for process or period-specific volume monitoring
- Enclosure is NEMA 4 for Class I, Division I environments
These heavy-duty in-line flowmeters / totalizers display flow rate and accumulated flow in GPM or LPM. The NEMA enclosure is suitable for indoor/outdoor use in dusty, dirty and wet environments. This compact yet robust design makes them ideal for use in manufacturing, pilot-plant, or quality control areas.
All flowmeters measure linearly across a range and record a cumulative volume plus a resettable volume. Meters are factory-calibrated using water but can store 2 application-specific K-factors determined in-process. To conserve power, the six-digit display automatically turns on with flow and then turns off four minutes after flow ceases.
Wetted components are 316 SS or aluminIum housing, PVDF rotor and supports, tungsten carbide shaft, 316 SS retainers, and ceramic bearings. The internal parts are simple to replace for easy maintenance (contact Cole-Parmer Applications if necessary).
Meters operate on two lithium batteries. Remote installation of the flowmeter body is possible using the optional remote installation kit (order separately). Replacement battery kits, output modules, and calibration containers can be ordered below.
USUALLY SHIPS IN 24 DAYS
